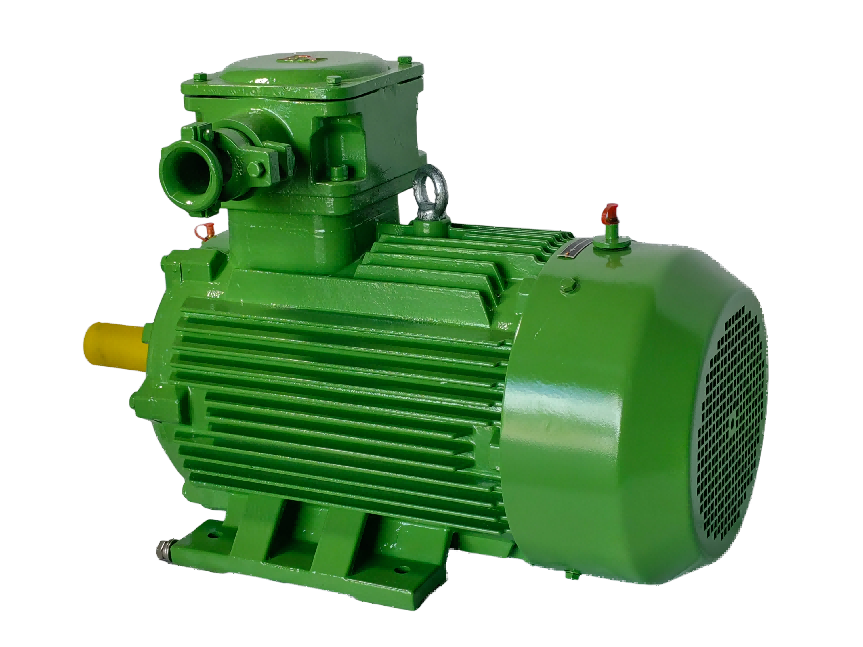

CE Certification Wolong Nanyang YBX5 series low voltage ultra-high efficiency explosion-proof three-phase asynchronous motor Factory, Companies
YBX5 series motors are fully enclosed, self-fan-cooled, squirrel-cage, ultra-high efficiency flameproof three-phase asynchronous motors independently developed by Wolong Nanyang Motor. The efficiency index reaches the highest energy efficiency IE1 marine motor, and has excellent performance, safe and reliable use, lower vibration and noise than similar products, and meets environmental protection requirements.
YBX5 explosion-proof motor has the advantages of energy saving, large temperature rise margin, long life, good performance, small vibration, advanced explosion-proof structure, excellent starting performance, beautiful appearance, high reliability, and no electric sparks are generated during operation. The flameproof performance of the YBX5 series flameproof three-phase asynchronous motor complies with the provisions of GB3836.1-2010 "Explosive Atmospheres Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosure \"d\"". The mechanical and electrical performance of the motor complies with Q/HSD 17-2021 "Technical Conditions for YBX5 Series Flameproof (ExdIICT4) Three-Phase Asynchronous Motors (Frame Size 63~355)".
Application
YBX5 series explosion-proof three-phase asynchronous motors, explosion-proof performance meets ATEX standards, suitable for places with explosive gas mixtures, and hazardous areas in Zone 1 and Zone 2 with explosive environments. Explosion-proof mark: Ex d I Mb, Ex d IIB T4 Gb, and can also be made into Ex d IIC T4 Gb. It can be used in different industries such as petrochemicals, coal mines, mines, ports, power plants, and mechanical industries to drive various general-purpose machinery, such as fans, compressors, water pumps, crushers, winches, centrifuges, cutting machine tools, and transportation machinery. It is an ideal power source.
✓Mode of connection: 380V "Y" below, Over 3kW motor 380V "Δ" connection
✓Levels of protection: IP56, IP65, IP66, and other IP55
✓Cooling-down method: IC411
Motor Type Description
YB X 5 - 355 M 1 - 4 W
YB: Flameproof
X: High efficiency
5: Energy efficiency level is IEC1
355: Shaft center height
M: Code of frame length
1: Code of core length
4: Number of poles
W: Code of special environment

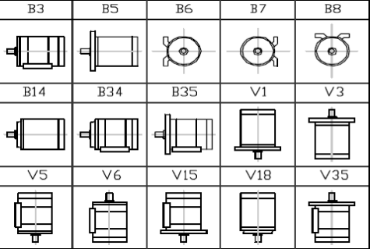

Mounting

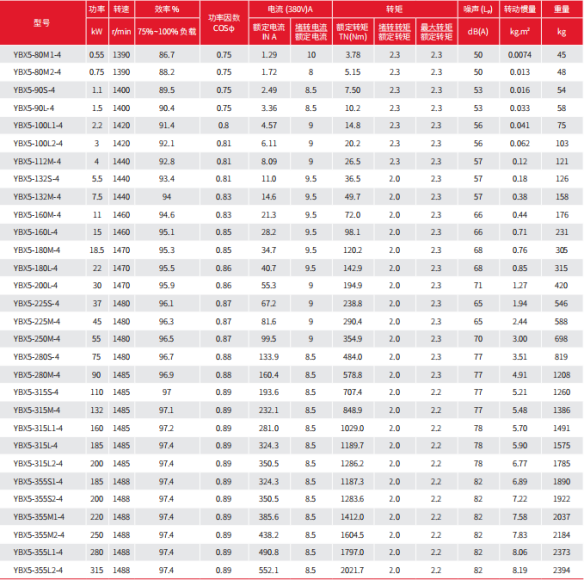

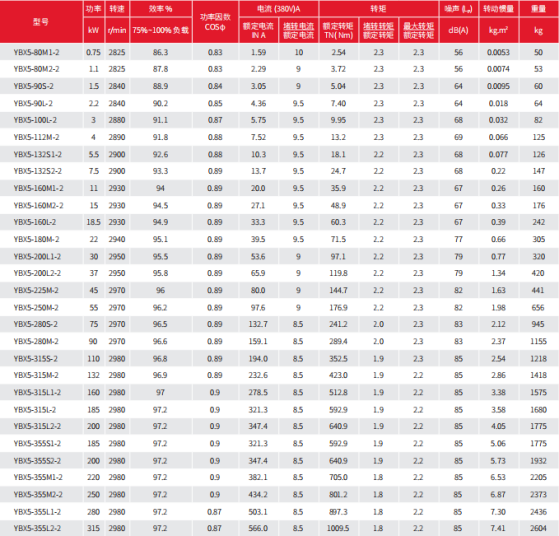

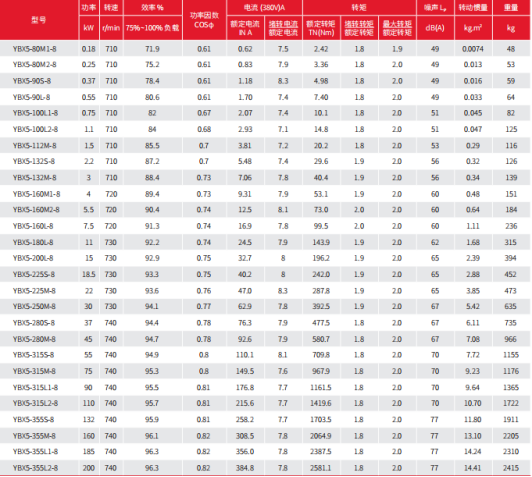

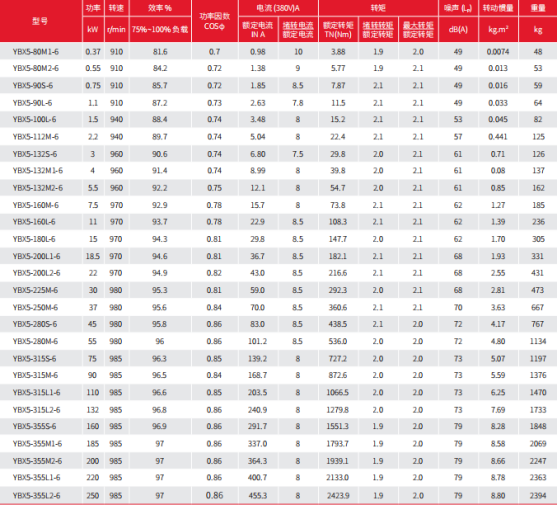

Parameter
Frequently Asked Questions
What are the main advantages of the YBX5 explosion-proof motor?
The YBX5 explosion-proof motor offers energy saving, a large temperature rise margin, long life, good overall performance, small vibration, an advanced explosion-proof structure, excellent starting performance, high reliability, and operates without generating electric sparks.
Which explosion-proof standards do the YBX5 series motors comply with?
Their flameproof performance complies with the GB3836.1-2010 "Explosive Atmospheres Part 1: General Requirements for Equipment" and GB3836.2-2010 "Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosure 'd'". They also meet ATEX standards.
In which industries and zones can YBX5 motors be used?
They are suitable for hazardous areas in Zone 1 and Zone 2 containing explosive gas mixtures. They can be applied in petrochemicals, coal mines, mines, ports, power plants, and other mechanical industries to drive fans, compressors, water pumps, crushers, and winches.
What are the basic electrical specifications of the YBX5 motor?
The YBX5 motor has a rated power range of 0.18-315 kW, operates on 50Hz/60Hz frequencies, features an IE5 efficiency class (Grade 1 of GB18613-2020), and runs on various rated voltages such as 380V, 660V, and 690V.
What do the code designations like "YB", "X", and "5" stand for in the motor type description?
In the type breakdown, "YB" stands for Flameproof, "X" indicates high efficiency, and "5" indicates that the energy efficiency level complies with IEC1 standards.
What are the protection levels and cooling methods used in these motors?
The motors feature IP55, IP56, IP65, or IP66 protection levels, utilize the IC411 cooling-down method, and are designed with class F insulation.
