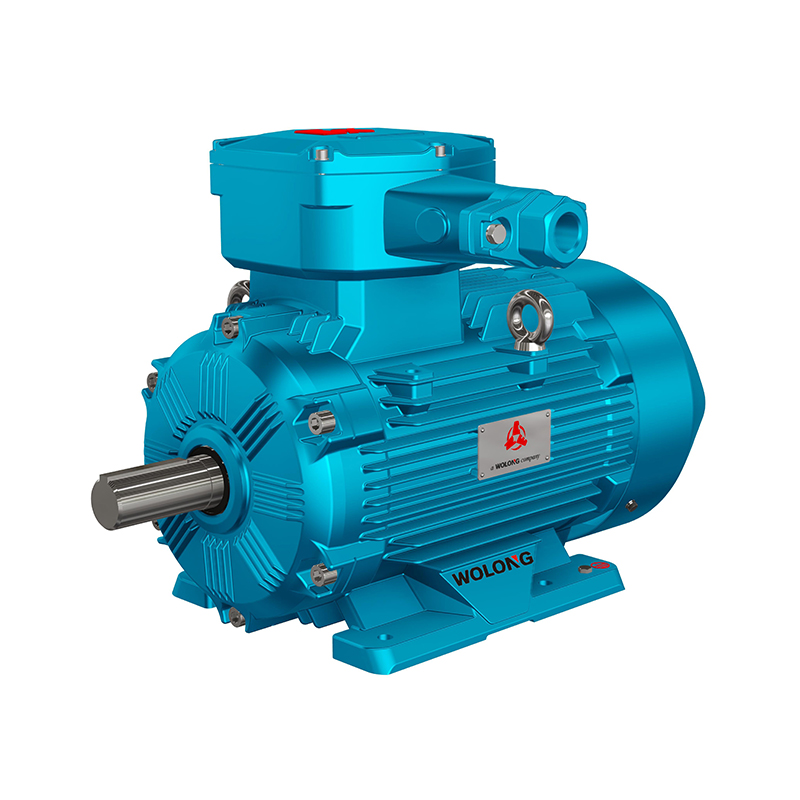

Wolong Nanyang YBX3 series high-efficiency flameproof three-phase asynchronous motors are jointly developed by German and Chinese technical teams, fully absorbing the excellent genes of European explosion-proof motor design, with a new appearance design, improving motor safety performance, expanding explosion-proof types, and enhancing frequency conversion capabilities. This product is a new upgraded product launched by Wolong for the world.
Send Inquiry

Product Description

Application

YBX3 series flameproof three-phase asynchronous motor is a new Explosion-Proof Electric Motor. The motor adopts THREEPHASE EXPLOSION-PROOF MOTORS SQUIRREL CAGE and is widely used in petrochemical, coal mines, mines, ports, power plants, machinery industry and other industries.

Model Description

1 The meaning of the motor explosion-proof mark.

Explosion-proof mark meaning

Implementation Standards

  • 4.1 GB 755 Rotating Electrical Machines Rating and Performance
  • 4.2 GB/T 997 Classification of structure type, installation type and junction box position of rotating electrical machines (IM code)
  • 4.3 GB/T 1032 Test methods for three-phase asynchronous motors
  • 4.4 GB/T 1993 Cooling methods for rotating electrical machines
  • 4.5 GB 1971 Rotating Electrical Machines Wire End Marks and Direction of Rotation
  • 4.6 GB/T 4772 Dimensions and output power levels of rotating electrical machines
  • 4.7 GB/T 4942.1 Classification of enclosure protection level (IP code) for the overall structure of rotating electrical machines
  • 4.9 GB/T 10069.1-2006 Measurement methods and limits of noise of rotating electrical machines Part 1: Measurement methods of noise of rotating electrical machines
  • 4.10 GB/T 10069.3-2008 Measurement methods and limits of noise of rotating electrical machines Part 3: Noise limits
  • 4.11 GB 14711 Safety requirements for small and medium rotating electrical machines
  • 4.12 GB 3836.1 Explosive atmospheres - Part 1: General requirements for equipment
  • 4.13 GB 3836.2 Explosive atmospheres - Part 2: Equipment protected by flameproof enclosure "d"
  • 4.14 GB 3836.3 Explosive atmospheres - Part 3: Equipment protected by increased safety type "e"
  • 4.15 GB 50058 Code for Design of Electrical Installations in Explosion and Fire Hazardous Environments

Basic Features

  • 5.1 Frame size: 63~400.
  • 5.2 Rated power range: 0.12～630KW
  • 5.3 Number of poles: 2～16 poles
  • 5.4 Rated voltage: 380, 660, 380/660, 400, 690, 400/690V, 415, 720, 415/720V, 440V, 460V. (Note: The voltage 380V of the basic series 3kW and below is Y connection, and the voltage 380V above 3kW is △ connection; special voltage can also be manufactured)
  • 5.5 Rated frequency: 50Hz or 60Hz
  • 5.6 Insulation class: 155 (F)
  • 5.7 Efficiency: Class 2. It complies with the energy efficiency level 2 of GB18613-2012 "Energy Efficiency Allowable Values and Energy Efficiency Grades of Small and Medium-sized Three-phase Asynchronous Motors".
  • 5.8 Cooling method: The cooling method of frame size 63～71 is: IC410; The cooling method of frame size 80-400 is: IC411
  • 5.9 Installation method: IMB3 (other installation methods can also be manufactured).
  • 5.10 Protection level: IP55, also can be specially manufactured as IP56, IP65, IP66
  • 5.11 Operation mode: S1
  • 5.12 Explosion-proof mark: Ex d IIB T4 Gb, Ex d IIC T4 Gb.
  • 5.13 Standard configuration: indoor. Optional configurations: outdoor (W), outdoor moderate corrosion protection (WF1), outdoor strong corrosion protection (WF2), indoor moderate corrosion protection (F1), indoor strong corrosion protection (F2), humid tropics (TH), dry Tropical (TA), Tropical Wet Outdoors (THW), Tropical Dry Outdoors (TAW).
  • 5.14 Main junction box: The main junction box of frame size 63-355 is located on the top of the motor (viewed from the motor shaft extension end), and the outlet can be adjusted in four directions, but the outlet of the junction box with a center height of 160 and above faces backward (towards the non-axis).

Installation Method

Parameter

Type Power KW Speed r/min Efficiency % Power Factor Current (A) Torque Noise dB(A) LW/LP Moment of Inertia kg.m2 Weight kg 100% load
100% Load 75% Load Rated Current (A) 380V Locked /Rated Current Rated Torque TN ( Nm) Locked /Rated Torque Max /Rated Torque
Syn.speed 3000r/min
YBX3-63M1-2 0.18 2800 72．4 72．4 0.8 0.47 5.5 0.61 2.3 2.2 61/53 0.001 22
YBX3-63M2-2 0.25 2800 75．2 75．2 0.81 0.62 5.5 0.85 2.3 2.2 61/53 0.002 25
YBX3-71M1-2 0.37 2800 76．5 76．5 0.81 0.91 6.1 1.26 2.3 2.2 64/56 0.003 30
YBX3-71M2-2 0.55 2800 78．4 78．4 0.82 1.30 6.1 1.88 2.3 2.3 64/56 0.004 32
YBX3-80M1-2 0.75 2825 80.7 80.7 0.83 1.71 6.8 2.54 2.3 2.3 64/56 0.005 43
YBX3-80M2-2 1.1 2825 82.7 82.7 0.83 2.43 7.3 3.72 2.3 2.3 64/56 0.007 46
YBX3-90S-2 1.5 2840 84.2 84.2 0.84 3.22 7.6 5.04 2.3 2.3 72/64 0.009 52
YBX3-90L-2 2.2 2840 85.9 85.9 0.85 4.58 7.8 7.40 2.3 2.3 72/64 0.017 55
YBX3-100L-2 3 2880 87.1 87.1 0.87 6.02 8.1 9.95 2.3 2.3 76/68 0.03 71
YBX3-112M-2 4 2890 88.1 88.1 0.88 7.84 8.3 13.22 2.2 2.3 77/69 0.063 98
YBX3-132S1-2 5.5 2900 89.2 89.2 0.88 10.65 8.0 18.11 2.2 2.3 80/72 0.073 119
YBX3-132S2-2 7.5 2900 90.1 90.1 0.89 14.21 7.8 24.70 2.2 2.3 80/72 0.21 125
YBX3-160M1-2 11 2930 91.2 91.2 0.89 20.59 7.9 35.85 2.2 2.3 82/74 0.25 170
YBX3-160M2-2 15 2930 91.9 91.9 0.89 27.86 8.0 48.89 2.2 2.3 82/74 0.31 175
YBX3-160L-2 18.5 2930 92.4 92.4 0.89 34.18 8.1 60.30 2.2 2.3 82/74 0.37 185
YBX3-180M-2 22 2940 92.7 92.7 0.89 40.52 8.2 71.46 2.2 2.3 85/77 0.63 270
YBX3-200L1-2 30 2950 93.3 93.3 0.89 54.89 7.5 97.12 2.2 2.3 87/79 0.73 320
YBX3-200L2-2 37 2950 93.7 93.7 0.89 67.41 7.5 119.78 2.2 2.3 87/79 1.28 340
YBX3-225M-2 45 2970 94 94 0.89 81.73 7.6 144.70 2.2 2.3 89/82 1.55 420
YBX3-250M-2 55 2970 94.3 94.3 0.89 99.57 7.6 176.85 2.2 2.3 89/82 1.89 540
YBX3-280S-2 75 2970 94.7 94.7 0.89 135.2 6.9 241.16 2.0 2.3 91/83 2.02 640
YBX3-280M-2 90 2970 95 95 0.89 161.7 7.0 289.39 2.0 2.3 91/83 2.26 720
YBX3-315S-2 110 2980 95.2 95.2 0.90 195.0 7.1 352.52 2.0 2.2 95/85 2.42 1265
YBX3-315M-2 132 2980 95.4 95.4 0.90 233.5 7.1 423.02 2.0 2.2 95/85 2.726 1334
YBX3-315L1-2 160 2980 95.6 95.6 0.91 279.4 7.1 512.75 2.0 2.2 95/85 3.22 1553
YBX3-315L-2 185 2980 95.7 95.7 0.91 322.7 7.1 592.87 2.0 2.2 95/85 3.41 1725
YBX3-315L2-2 200 2980 95.8 95.8 0.91 348.5 7.1 640.94 2.0 2.2 95/85 3.86 1840
YBX3-355S1-2 185 2980 95.8 95.8 0.91 322.4 7.1 592.87 2.0 2.2 98/88 4.82 1944
YBX3-355S2-2 200 2980 95.8 95.8 0.91 348.5 7.1 640.94 2.0 2.2 98/88 5.46 1944
YBX3-355M1-2 220 2980 95.8 95.8 0.91 383.4 7.1 705.03 2.0 2.2 98/88 6.22 2116
YBX3-355M2-2 250 2980 95.8 95.8 0.91 435.7 7.1 801.17 2.0 2.2 98/88 6.54 2415
YBX3-355L1-2 280 2980 95.8 95.8 0.91 488.0 7.1 897.32 2.0 2.2 98/88 6.95 2599
YBX3-355L2-2 315 2980 95.8 95.8 0.91 549.0 7.1 1009.4 2.0 2.2 98/88 7.06 3260
YBX3-4001-2 355 2980 95.8 95.8 0.91 618.7 7.1 1137.6 1.1 2.2 105/97 6.8 3370
YBX3-4002-2 400 2980 95.8 95.8 0.91 697.1 7.1 1281.8 1.1 2.2 105/97 8.2 3450
YBX3-4003-2 450 2980 95.8 95.8 0.91 784.2 7.1 1442.1 1.1 2.2 105/97 9.3 3540
YBX3-4004-2 500 2980 95.8 95.8 0.91 871.4 7.1 1602.3 1.1 2.2 105/97 10.3 3620
YBX3-4005-2 560 2980 95.8 95.8 0.91 976 7.1 1794.6 1.1 2.2 105/97 12.5 3690
YBX3-4006-2 630 2980 95.8 95.8 0.91 1098 7.1 2019 1.1 2.2 105/97 14.3 3800
Syn.speed 1500r/min
YBX3-63M1-4 0.12 1380 63．8 63．8 0.72 0.40 4.4 0.83 2.3 2.2 52/44 0.002 22
YBX3-63M2-4 0.18 1380 67．7 67．7 0.73 0.55 4.4 1.25 2.3 2.2 52/44 0.003 25

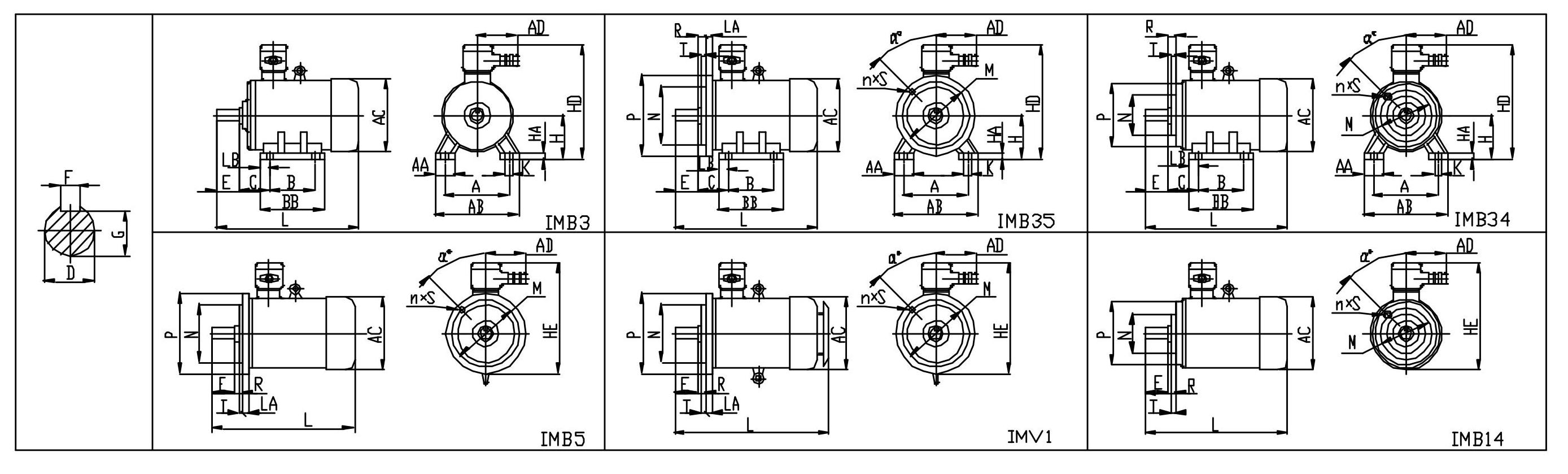

Installation Method Diagram

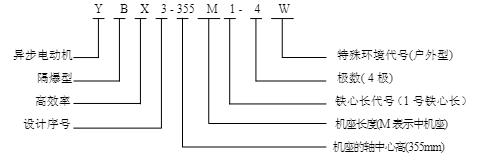

2 Motor model representative meaning

Motor Model Meaning Diagram

Frequently Asked Questions (FAQ)

What are the main applications of YBX3 series motors?

YBX3 series flameproof three-phase asynchronous motors are widely used in petrochemical, coal mines, mines, ports, power plants, machinery industry, and other hazardous environments where explosive gas atmospheres may be present.

What explosion-proof markings do YBX3 motors support?

The standard configurations support explosion-proof markings such as Ex d IIB T4 Gb and Ex d IIC T4 Gb, ensuring safety in explosive environments.

What is the efficiency class of the YBX3 series motor?

YBX3 motors feature high energy efficiency that complies with Class 2 energy efficiency levels according to GB18613-2012 standards.

What rated voltage and frequency options are available?

Standard rated voltages include 380V, 660V, 380/660V, 400V, 690V, 400/690V, 415V, 720V, and others at rated frequencies of 50Hz or 60Hz. Special voltages can also be customized.

What are the protection and insulation classes?

The motors feature an IP55 protection level (which can be upgraded to IP56, IP65, or IP66 upon request) and use Class 155 (F) insulation to ensure durability and thermal stability.

Where is the junction box located on YBX3 motors?

For frame sizes 63-355, the main junction box is located on top of the motor (viewed from the shaft extension end) with four adjustable outlet directions.
