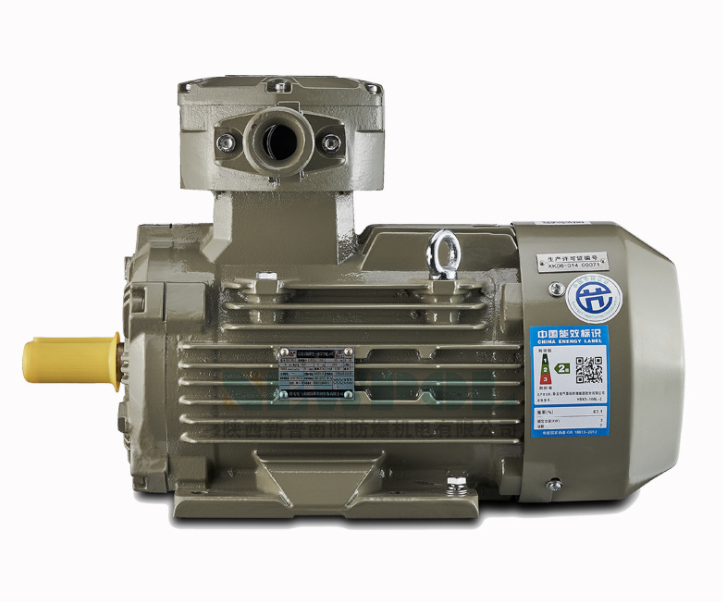

Wolong Nanyang YBX4 series motors are fully enclosed, self-fan-cooled, squirrel-cage high-efficiency flameproof three-phase asynchronous motors independently developed and launched. The efficiency and energy efficiency level is IE2, and it has excellent performance, safe and reliable use, and lower vibration and noise than similar products, meeting environmental protection requirements.
Send Inquiry

Product Description

Application
YBX4 Series THREEPHASE EXPLOSION-PROOF MOTORS SQUIRREL CAGE High-Quality Explosion-Proof Motors. It is mainly used in coal mine, oil and gas, petrochemical and chemical industries. In addition, it is also widely used in textile, metallurgy, city gas, transportation, grain and oil processing, paper making, medicine and other sectors.
Basic Features
⚡ 1. Stand No.: 63~355.
⚡ 2. Rated power range: 0.12kW~315kW.
⚡ 3. Pole number: 2~8 poles.
⚡ 4. Rated voltage: 380V, 660V, 380 / 660V, 400,690,400 / 690V. (Note: basic voltage of 3kW and below 380V is Y, and voltage of 380V above 3kW is △; it can also be manufactured by special voltage)
⚡ 5. Rated frequency: 50Hz or 60Hz.
⚡ 6. Insulation grade: 155 (Grade F).
⚡ 7. Efficiency: Grade 2.
⚡ 8. Standard: In GB18613-2020. Cooling mode: IC411.
⚡ 9. Installation mode: IMB 3, IMB 5, IMB 35, IMV 1 (other installation methods can also be manufactured).
⚡ 10. Protection level: IP55.
⚡ 11. Operation mode: S1.
⚡ 12. Explosion-proof marks: ExdllBT4Gb, ExdllCT4Gb.
⚡ 13. Configuration: Indoor household (standard configuration). Optional configuration: outdoor (W), outdoor medium anticorrosion (WF1), outdoor strong corrosion (WF2), indoor moderate corrosion (F1), indoor strong corrosion (F2), humid belt (TH), dry zone (TA), outdoor humid belt (THW), outdoor dry zone (TAW).
Implementation Standards
YBX4 ultra-high efficiency explosion-proof three-phase asynchronous motor executes relevant main standards:
  • GB 755 rotating motor quotas and performance
  • GB/T 1032 three-phase asynchronous motor test methods
  • GB/T1993 rotating motor cooling methods
  • GB 3836.1 Explosive environment Part 1: General requirements for equipment
  • GB 3836.2 Explosive atmosphere Part 2: equipment protected by explosion-proof enclosure "d"
  • GB/T 4942.1 Rotating motor overall structure of the protection level (IP code) classification
  • GB 10068 shaft center height of 56mm and above the motor's mechanical vibration vibration measurement, evaluation and limit values
  • GB/T10069.1 rotating motor noise measurement methods and limits Part 1: rotating motor noise measurement methods
  • GB/T10069.3 rotating motor noise determination methods and limits Part 3: noise limits
Mounting

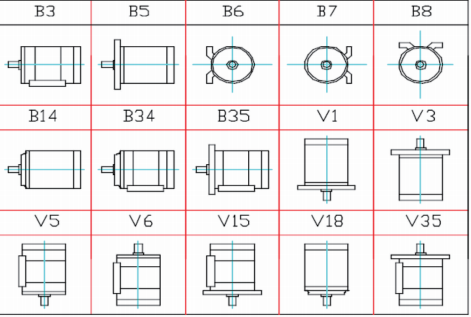

YBX4 Mounting Dimensions
Parameter
YBX4 Parameter Table 1 YBX4 Parameter Table 2 YBX4 Parameter Table 3 YBX4 Parameter Table 5
Frequently Asked Questions
What are the primary applications for YBX4 series motors?
YBX4 series three-phase explosion-proof squirrel cage motors are primarily designed for hazardous environments such as coal mines, oil and gas, petrochemical, and chemical industries. They are also widely used in metallurgy, textile, city gas, transportation, medicine, and food processing.
What is the rated power and voltage range of the YBX4 series?
The rated power range spans from 0.12kW to 315kW, corresponding to Stand Nos 63 to 355. Available rated voltages include 380V, 660V, 380/660V, 400V, 690V, and 400/690V. The basic voltage of 3kW and below is Y connection, and above 3kW is △ connection. Special voltages are customizable.
What is the protection level and insulation class of these motors?
The motors are constructed with a protection rating of IP55 to prevent ingress of dust and water, and they feature a high-reliability insulation grade of 155 (Grade F) and an operation mode of S1 (continuous duty).
Which execution standards do the YBX4 motors comply with?
They conform to various major industry standards, including GB 755 (rotating motor performance), GB/T 1032 (testing methods), GB 3836.1 and GB 3836.2 (explosive environments specifications), and GB 18613-2020 for motor efficiency limits.
What explosion-proof markings do YBX4 motors carry?
These motors carry the official marks ExdllBT4Gb and ExdllCT4Gb, certifying their safe operation and flameproof capabilities within specific gas explosive atmospheres.
Are there optional configurations for extreme outdoor environments?
Yes. While the standard design is for indoor household use, optional configurations include outdoor (W), medium anticorrosion (WF1), strong corrosion (WF2), humid belt (TH), dry zone (TA), as well as combined outdoor humid/dry zones (THW/TAW).
