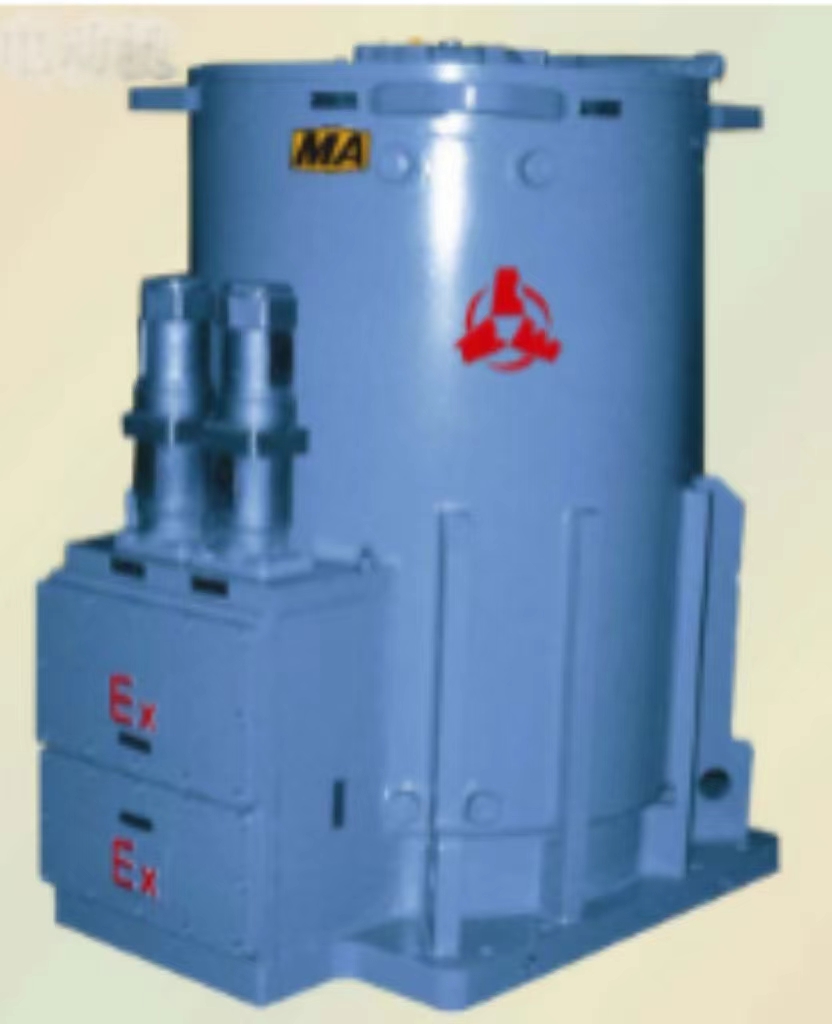

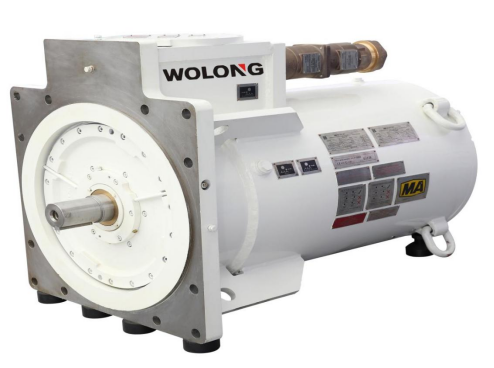

YBSS series conveyors explosion proof three-phase asynchronous motors are special motors for driving bendable scraper conveyors, belt conveyors or other equipment in coal mines. The explosion-proof performance of the motor is in accordance with GB3836.1-2010 “Explosive Atmosphere Part 1: General Requirements for Equipment” and GB3836.2-2010 Explosive Atmosphere Part 2: Equipment Protected by Flameproof Enclosure “d”. Its explosion-proof mark is “Ex d I Mb” (“Exd I”-before 2010). It is suitable for the place where the explosive gas mixture of methane or coal dust exists.
Y B S S - 250 - 4G
Y B - Asynchronous motor, flameproof type S- Conveyor S- Water cooling 250 - Power(kW)4- Poles
G- Plateau

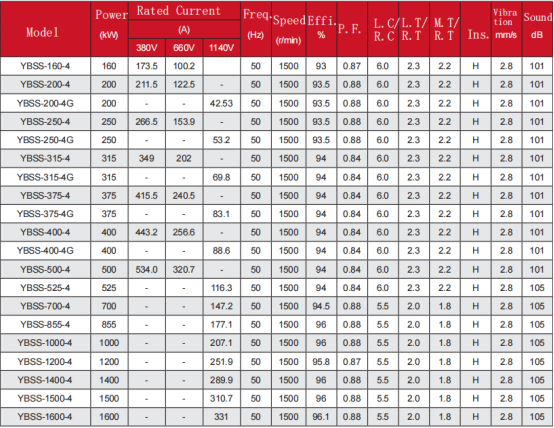

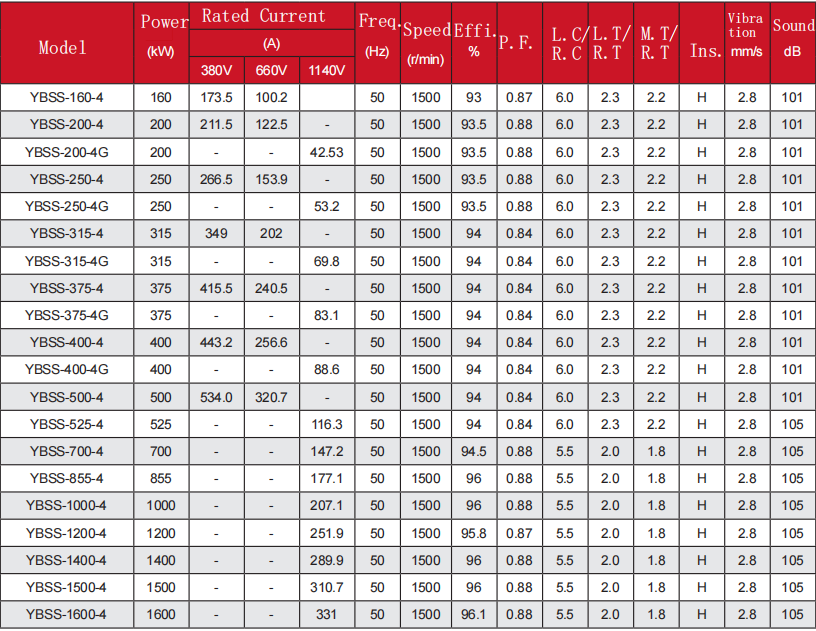

Ex dⅠMb Ex--Explosion Protection Mark d--Type of Explosion Protection(Explosion-proof Type) Ⅰ -- Electrical Apparatus Class(ClassⅠ) Mb -- Equipment Protection Degree Basic parameters: Rated voltage: 660/1140V, 1140V, 3300V Rated frequency: 50Hz Rated power: 160~1600kW, 110/55~1000/500kW Number of poles: 4, 4/8 Thermal classification: 180(H) Temperature rise limit: 135K Installation method: IMB10, IMB5, IMB3, IMB35 Protection level: IP55 Cooling method: IC3W7 Ambient air temperature: 0~+40℃ Operation mode: S1 Altitude: ≤1000mm Indoor (standard configuration) Explosion-proof mark (standard configuration): Exd I Mb Parameter
The explosion-proof performance of the Ac motor is in accordance with GB3836.1-2010 “Explosive Atmosphere Part 1: General Requirements for Equipment” and GB3836.2-2010 Explosive Atmosphere Part 2: Equipment Protected by Flameproof Enclosure “d”. Its explosion-proof mark is “Ex d I Mb” (“Exd I”-before 2010). It is suitable for the place where the explosive gas mixture of methane or coal dust exists.
A: The motor complies with the standards GB3836.1-2010 (Explosive Atmosphere Part 1: General Requirements) and GB3836.2-2010 (Explosive Atmosphere Part 2: Flameproof Enclosure “d”).
A: It is designed for applications where explosive gas mixtures of methane or coal dust are present, such as in coal mining environments.
A: "YB" denotes a flameproof asynchronous motor, the first "S" indicates it is designed for conveyor systems, and the second "S" represents water cooling.
A: "Ex" stands for Explosion Protection, "d" means the explosion protection type is flameproof, "I" represents the electrical apparatus class (Class I for mines), and "Mb" denotes the equipment protection level.
A: The motor supports rated voltages of 660/1140V, 1140V, and 3300V, running at a rated frequency of 50Hz.
A: The motor is built with an IP55 protection level and employs the IC3W7 cooling method (water cooling).
