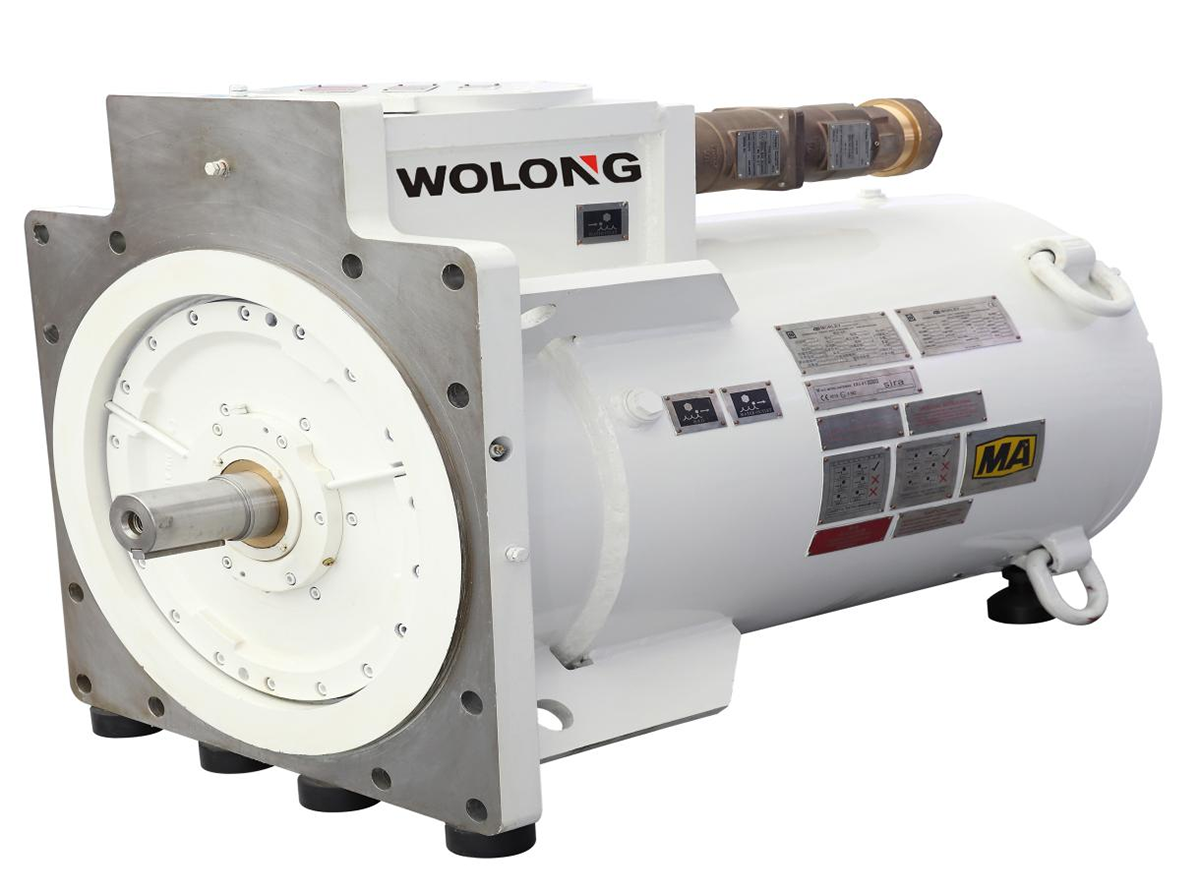

Asynchronous motor, flameproof type
Conveyor
Power (kW)
Poles (& supplementary code)
Explosion Protection Mark
Type of Explosion Protection (Flameproof Type)
Electrical Apparatus Class (Class Ⅰ)
Equipment Protection Degree
| Rated Power | 4-400kW (air-air cooling) 160-1600kW 110/55~1000/500kW |
| Rated Voltage | 380V/660V 660/1140V 1140V 3300V |
| Rated Frequency | 50Hz |
| Poles | 4 4/8 |
| Insulation | 180 (H) |
| Temp. Rise | 105K (F) 135K (H) |
| Cooling Method | IC411 IC3W7 |
| Mounting | IMB3 IMB5 IMB35 IMB10 |
| Protection Grade | IP55 IP67 |
| Service | S1 |
| Ambient Temperature | -20 °C ~ + 40 °C (air cold), 0 °C ~ + 40 °C (water cold) |
| Environment | Indoors |
| Altitude | ≤1000m |
These motors comply strictly with GB3836.1-2010 (General Requirements for Equipment in Explosive Atmospheres) and GB3836.2-2010 (Equipment Protected by Flameproof Enclosure "d") standards.
"Ex" indicates the explosion protection mark, "d" stands for the flameproof type, "I" represents the Electrical Apparatus Class (specifically for coal mines), and "Mb" refers to the high Equipment Protection Level (EPL).
It is designed for environments where explosive gas mixtures such as methane or coal dust are present, typically encountered in underground mine operations.
The rated power ranges from 4kW to 1600kW depending on the cooling type, and the available voltage options include 380V/660V, 660/1140V, 1140V, and 3300V at 50Hz.
The motor uses Class 180 (H) insulation with temperature rise ratings of 105K (F) and 135K (H). The ingress protection grade options are IP55 and IP67, ensuring high reliability in harsh environments.
