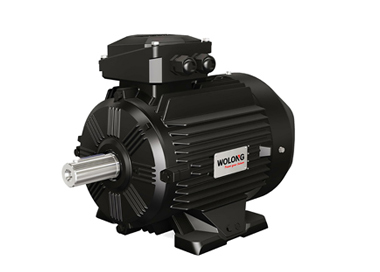

CE Certification Wolong Nanyang WEPM series variable frequency speed Three-phase regulation PMSM motor Exporter, Companies
As a pmsm motor manufacturer, WOLONG Nanyang produces WEPM5 & WEPM variable frequency speed permanent magnet synchronous PMSM electric motors with energy efficiency in line with IE5~IE4 efficiency levels. The motors feature a rotor with permanent magnets, have higher efficiency and power density than induction motors, and have smaller frame sizes for motors with the same power and torque output.
WEPM series PMSM intermittent motor has the characteristics of beautiful appearance, high efficiency, low noise, low vibration, safety and reliability, easy maintenance, PMSM efficiency, etc. It can be widely used in various transmission machinery industries such as water pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery, construction machinery, PMSM motors for compressors, etc.
Cast Aluminum Specifications
Frame Size
H56-H160
Rated Power
0.25 ~ 55kW
Rated Speed
3000, 1500 and 1000r/min
Rated Voltage
380V 400V or according to customer needs
Duty System
S1 S2, S3, etc.
Efficiency Class
IE4 IE5
Installation Method
B3 B5, B35, V1, etc.
Insulation Class
F class (△ T 80K) H class, nano insulation
Service Factor
1 > 1.0
Protection Class
IP55 IP56, IP65, IP66 etc.
Cooling Method
IC411 IC416
Chassis Material
Cast aluminum
Junction Box Material
Cast aluminum
Terminal Box Location
Top of Motor Right or Left of Motor
Bearing Lubrication
Maintenance-free bearings
Motor Protection
With protection device
Frequency Converter
With frequency converter
Cast Iron Specifications
Frame Size
H132-H315
Rated Power
7.5 ~ 315kW
Rated Speed
3000, 1500 and 1000r/min
Rated Voltage
380V 400V or according to customer needs
Duty System
S1 S2, S3, etc.
Efficiency Class
IE4 IE5
Installation Method
B3 B5, B35, V1, etc.
Insulation Class
F class (△ T 80K) H class, nano insulation
Service Factor
1 > 1.0
Protection Class
IP55 IP56, IP65, IP66 etc.
Cooling Method
IC411 IC416
Chassis Material
Cast iron
Junction Box Material
Cast aluminum alloy
Terminal Box Location
Top of Motor Right or Left of Motor
Bearing Lubrication
H180 and below maintenance-free bearings, H200 and above open bearings with oil filling device
Motor Protection
With protection device
Frequency Converter
With frequency converter
Frequently Asked Questions
What are the main advantages of the WEPM series PMSM intermittent motor?
The WEPM series motor features a beautiful appearance, high efficiency (supporting IE4 and IE5 efficiency classes), low noise, low vibration, safety and reliability, easy maintenance, and excellent PMSM efficiency performance.
What applications are these PMSM motors suitable for?
They can be widely used in various transmission machinery industries such as water pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery, construction machinery, and PMSM motors for compressors.
What are the differences in frame sizes and power ratings between Cast Aluminum and Cast Iron models?
The Cast Aluminum model offers frame sizes from H56 to H160 with a rated power of 0.25 to 55kW. The Cast Iron model supports larger sizes from H132 to H315 with a rated power ranging from 7.5 to 315kW.
What insulation and protection ratings do these motors feature?
Both versions use Class F (△ T 80K) or Class H nano insulation. They feature a service factor of > 1.0 and offer high protection classes including IP55, IP56, IP65, and IP66.
What are the lubrication requirements for the bearings?
The Cast Aluminum motor uses maintenance-free bearings. For the Cast Iron motor, sizes H180 and below use maintenance-free bearings, while sizes H200 and above use open bearings equipped with an oil filling device.
