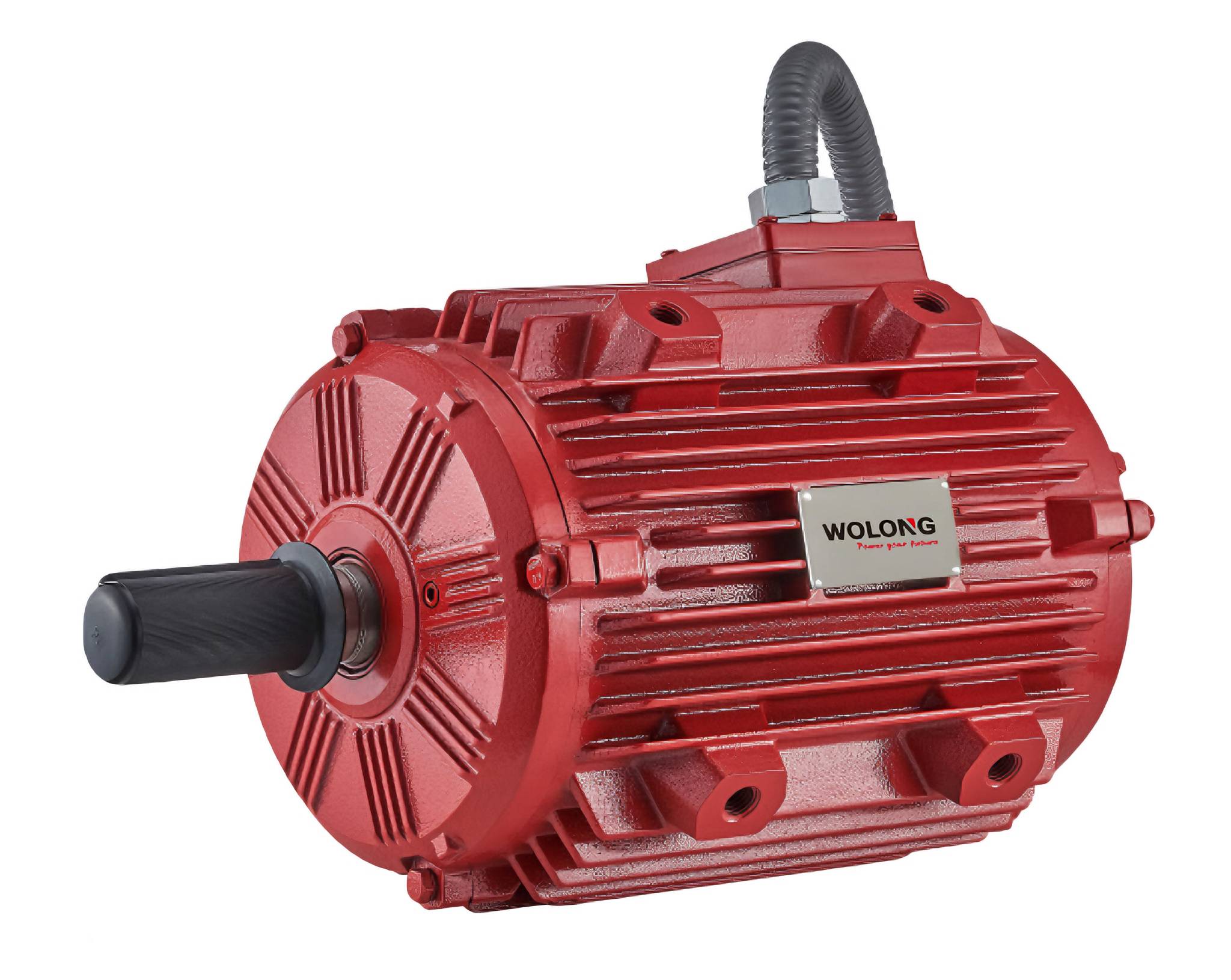

WXF High Temperature Motor is an IP65 electric motor designed to withstand high-temperature fire tests. It meets S1 and S2 operating conditions: under normal circumstances, it functions as a general motor for long-term continuous operation (S1). In emergencies such as smoke extraction, it initiates short-time operation (S2). In high-temperature fire scenarios, it ensures reliable operation for 2 hours at ambient temperatures up to 400ºC. Key characteristics include low loss, low vibration, safety, reliability, and easy maintenance.
A1: The WXF high temperature motor features an IP65 protection rating, ensuring robust protection against dust and low-pressure water jets.

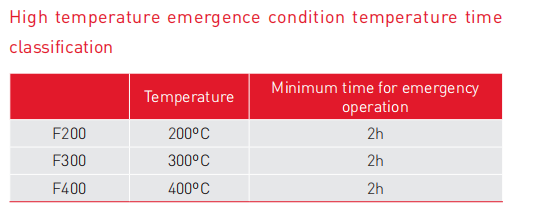

A2: In the event of emergency smoke and fire, the motor can run reliably at ambient temperatures up to 400ºC for up to 2 hours under S2 short-time operation mode.
A3: The motor is designed as an energy efficiency upgrade product, meeting both IEC60034-30-1 IE4 and IE2 efficiency standards.
A4: Yes, under normal conditions, the motor serves as a general motor designed for long-term continuous operation (S1 working condition).

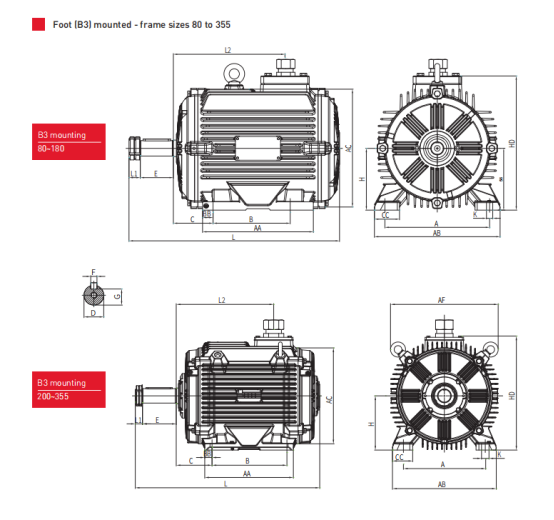

A5: The installation and mounting dimensions of the WXF high temperature motor fully conform to standard IEC dimensions.
A6: Standard operation requires an ambient air temperature between -20℃ and +40℃, an altitude of 1000 meters or less, and a monthly average maximum relative humidity not exceeding 90%.
