The Schorch brand high-voltage three-phase AC induction motor series boasts a globally favored box-type design with star connection, which ensures superior work ability. Upon removal of the protective cover (or cooler), the motor's interior becomes accessible for visual inspection and physical contact, facilitating straightforward installation and maintenance procedures.
The junction box is engineered with a compact structure and robust protection level. The wiring configuration is versatile, permitting connections from various angles, thus guaranteeing secure and dependable linkages. The electronic rotor is commonly produced using a cast aluminum rotor, where the rotor cage, end ring, and fan blades are formed in a single process, which bolsters operational dependability. The stator employs an external pressure-mounted design, and the use of F-class insulation material, anti-corona material, and vacuum impregnation treatment ensures exceptional insulation properties, protection against moisture, and resistance to impact.
The motor bearings utilize rolling bearings (motors H500 and below with 2-level power use sliding bearings), providing enhanced protection. Moreover, motors equipped with rolling bearings are outfitted with continuous oiling and oil discharge mechanisms, which augment the motor's operational efficiency. Additionally, users have the flexibility to choose motor bearings that align with the motor's power and speed specifications.

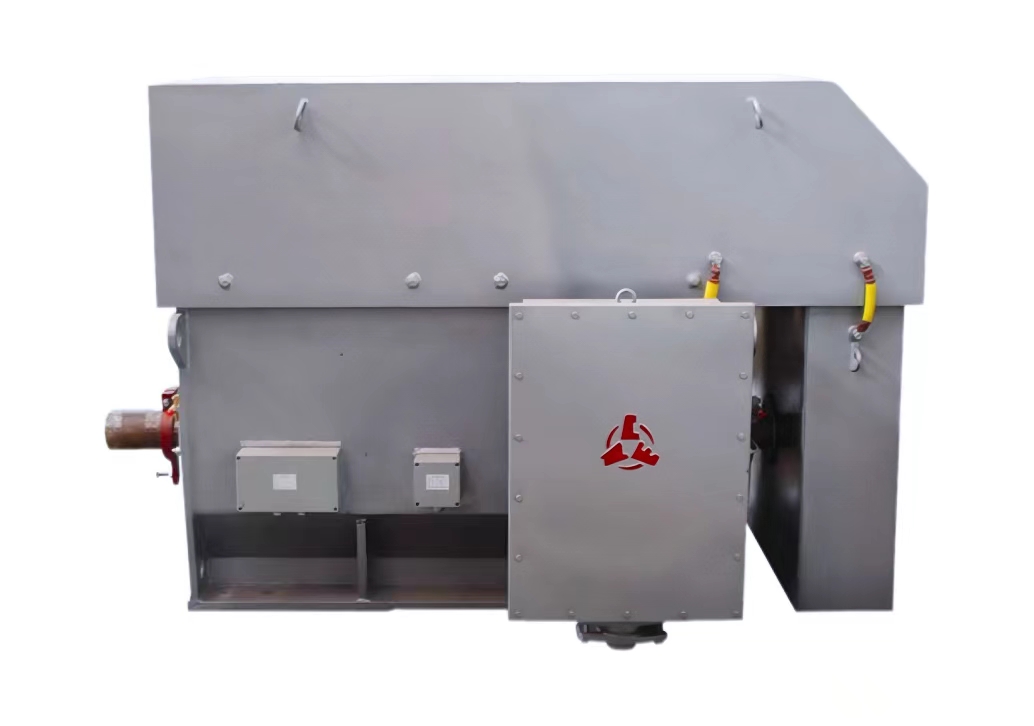

The Schorch brand YKS series of high-voltage three-phase asynchronous motor is an optimized series of products designed and manufactured using advanced domestic and foreign technologies combined with decades of practical experience in producing high-voltage motors. It has the advantages of light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, and easy installation and maintenance.
Primarily designed for fans, water pumps, compressors, crushers, chip cutting machines, and transportation machinery.
Commonly used in petroleum, chemicals, coal, power plants, metallurgy, transportation, textiles, pharmaceuticals, and grain processing.
Optional Environments:
Outdoor (W), Outdoor Moderate Corrosion (WF1), Outdoor Severe Corrosion (WF2), Indoor Moderate Corrosion (F1), Indoor Severe Corrosion (F2), Wet Tropical Zone (TH), Dry Tropical Zone (TA), Outdoor Wet Tropical Zone (THW), Outdoor Dry Tropical Zone (TAW).
The globally favored box-type design with star connection ensures superior operation capability. By removing the protective cover or cooler, technicians can directly access the motor interior for visual inspections and easy maintenance, making installation straightforward.
The electronic rotor is constructed using a cast aluminum rotor where the cage, end ring, and fan blades are formed in a single process to bolster dependability. The stator features an external pressure-mounted design utilizing Class F insulation, anti-corona materials, and vacuum impregnation for high moisture and impact resistance.
The motors generally use rolling bearings with continuous oiling and oil discharge mechanisms for enhanced efficiency. For H500 motors and below with 2-level power, sliding bearings are utilized. Users can select customized bearings to match specific power and speed needs.
YKS series high-voltage motors are ideal for general mechanical machinery such as fans, water pumps, compressors, crushers, chip cutting machines, and transport equipment. They are widely applied in chemical, petroleum, power plants, coal, metallurgy, transportation, and textile industries.
Yes. While the standard configuration is indoor-use, optional setups are available for outdoor use (W), moderate/severe corrosion resistance (WF1, WF2, F1, F2), and tropical zones (TH, TA, THW, TAW).
