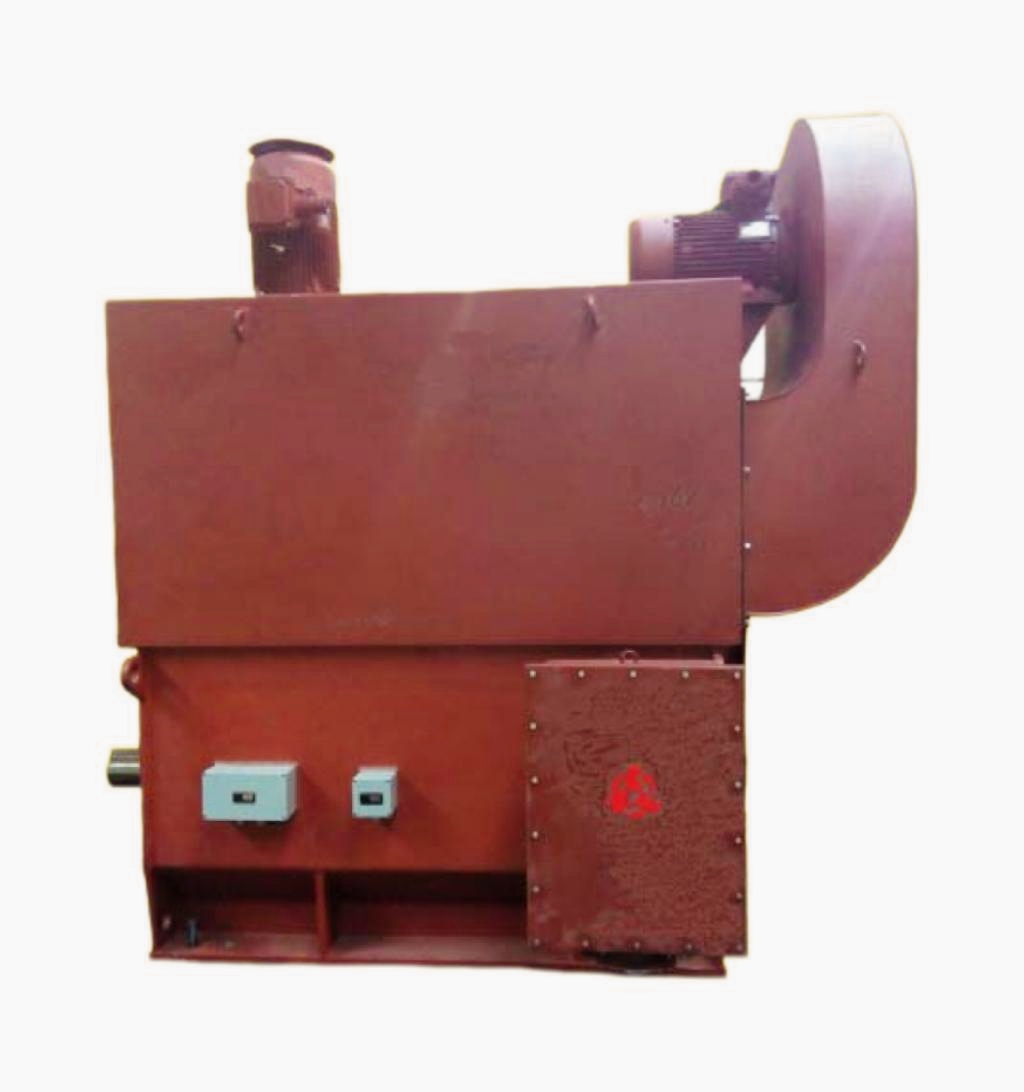

This series of motors is designed to work seamlessly with frequency converters, enabling a broad spectrum of smooth, stepless speed control. They offer a frequency range of 5-50Hz for constant torque speed control and 50-100Hz for constant power speed control, making them the perfect drive solution for equipment that demands precise speed regulation. Crafted from meticulously chosen materials, these motors boast a wide range of speed regulation, high efficiency, minimal noise, reduced vibration, and ensure safe and reliable operation. Additionally, they are user-friendly, easy to maintain, and promote energy conservation and environmental protection.
The YVF series is widely used for a range of transmission systems necessitating speed control, and is extensively utilized across various sectors including light industry, textiles, chemicals, petroleum, metallurgy, machine tools, and water pumps. When integrated with high-precision sensors, these devices can perform with high-precision closed-loop operation.
The YVF series motors support a frequency range of 5-50Hz for constant torque speed control and 50-100Hz for constant power speed control, offering precise and smooth stepless speed regulation.
These motors are widely utilized across various sectors, including light industry, textiles, chemicals, petroleum, metallurgy, machine tools, water pumps, and other transmission systems requiring speed control.
The cooling methods include IC666 (5~50Hz), IC611 (25~50Hz), IC616 (25~50Hz), and IC81W (5~50Hz), depending on operational demands.
Yes, standard motors are configured for indoor use, but optional features such as outdoor configuration (W), medium/strong corrosion protection (WF1, WF2, F1, F2), and tropical zone options (TH, TA, THW, TAW) are available.

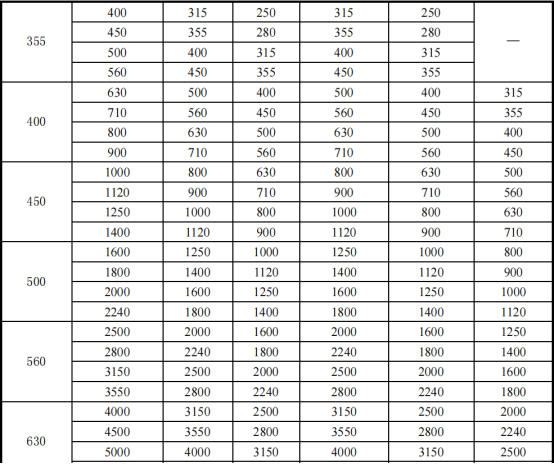

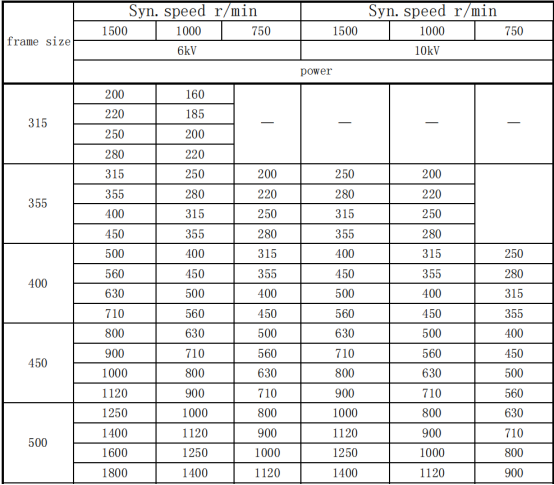

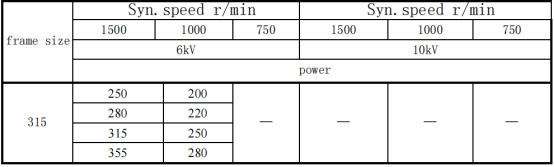

The series offers frame sizes ranging from 315 to 630 and operates at a rated voltage of either 6000V or 10000V.
Yes, when integrated with high-precision sensors, the YVF series motors can easily perform with high-precision closed-loop operation.
