The YKK high-voltage motor has the characteristics of low center height, large power induction motor, low noise, safe and reliable operation, and easy use and maintenance. It is suitable for driving various ventilators, compressors, water pumps, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as a motive force in enterprises with various working conditions such as mining, steel, machinery, petroleum, chemical industry, power stations, etc. No matter indoors or outdoors, in plateau climate or hot and humid climate, this series of high-voltage three-phase asynchronous motors can always provide outstanding driving force and have won the trust and praise of users.

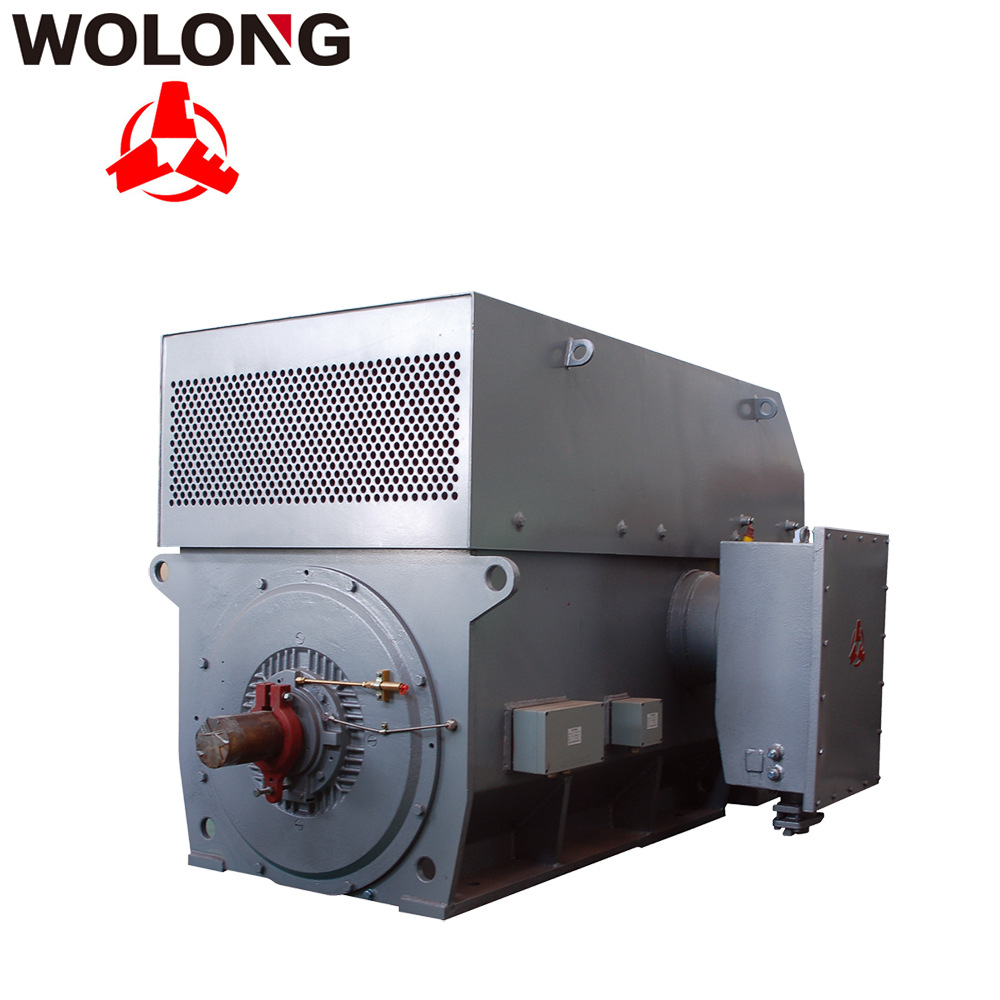

The YKK 3 phase induction motor squirrel cage boasts a globally favored box-type design. The frame and end cover are expertly welded together using steel plates, resulting in a product that is both lightweight and exceptionally sturdy. The removable top cover or cooler facilitates easy inspection and access to the motor's interior, which greatly aids in installation and maintenance tasks. The junction box, constructed with a sealed design, is typically affixed to the motor's right side when viewed from the shaft's extended end. However, the unit can also be configured for mounting on the left side to accommodate user preferences. The box's entrance hole is positioned downward, and the unit features separate grounding terminals both inside and outside the box.

The stator is crafted from class F insulating material and incorporate vacuum pressure impregnation technology (VPI), a magnetic slot wedge design, and secure end fixation. These motors deliver exceptional insulation performance, high mechanical strength, and robust moisture resistance, ensuring safe and reliable operation.
