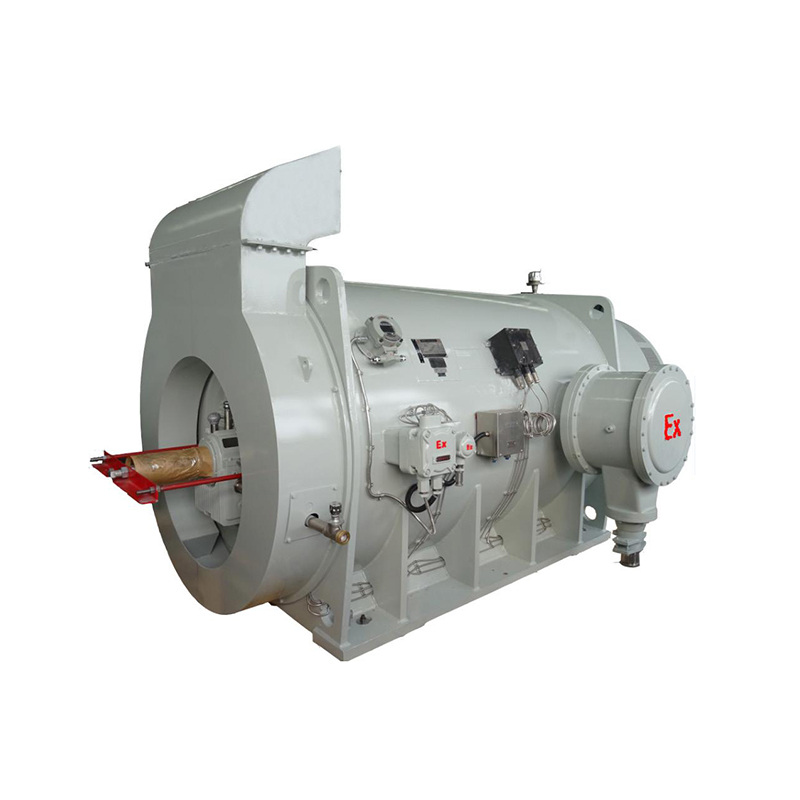

OEM WOLONG Nanyang ATB brand YBBPX High Voltage Explosion-Proof Variable Frequency Three-Phase Motor Suppliers, Factories
1 / 1
OEM WOLONG Nanyang ATB brand YBBPX High Voltage Explosion-Proof Variable Frequency Three-Phase Motor Suppliers, Factories

OEM WOLONG Nanyang ATB brand YBBPX High Voltage Explosion-Proof Variable Frequency Three-Phase Motor Suppliers, Factories

WOLONG Nanyang Schorch brand YBBPX series high-voltage explosion-proof variable frequency drives for induction motor adopts the current international high-voltage high-efficiency medium-sized motor.

Send Inquiry

Product Description

Application

Suitable for driving various fans, compressors, water pumps, cutting machinery, transportation machinery, general machinery and other mechanical equipment, in mining, steel, machinery, petroleum, chemical, It is used as the driving force in various working conditions such as power stations, and is suitable for equipment with constant torque, constant power, square torque and other loads. Whether indoors or outdoors, plateau climate or hot and humid. In different climates, this series of high-voltage three-phase asynchronous motors can always provide superior driving force, and these motors have won the trust and praise of users.

Model Description

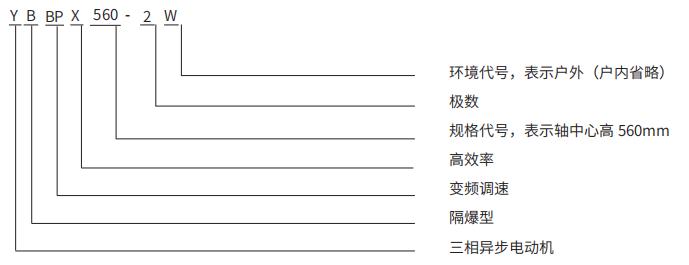

Model Description Diagram

Implementation Standards

Specification Standard product Option
Frame size 500~800 -
Rated power 185kw~2240kw -
Number of poles 2P~12P 10P,12P,14P,16P
Rated voltage 3000V~11000V 100KV~13.8KV
Frequency 50/Hz 60 Hz
Insulation Class 155(F)
Vibration speed 2.3mm/s 1.8mm/s
noise GB 10069.3
Cooling Method IC411
Sense of rotation 2P:clockwise 4P:315~400-Bi-direction
Mounting Type IMB3 IMB35,IMV1
Protection degree IP55 IP56,IP65
Duty S1 S3,S6,S9
Explosion proof class Ex d I Mb Ex d II B T4 Gb Ex II C T4 Gb
Temperature -20℃~+40℃ -40℃~60℃
Altitude ≤1000m ≤4500m
Paint color PB09(GSB05-1426) RAL

Parameter

Type Power Rated Current (A) Speed Efficiency Power Factor Locked /Rated Current Locked /Rated Torque Max /Rated Torque Moment of Inertia (Motor) Moment of Inertia (Load) Weight
  KW 6000V r/min η% COSΦ Ist Tst Tmx kg.m2 kg.m2 kg
Syn.Speed 3000r/min
YBBPX500-2 500 59 2977 94.7 0.86 6.5 0.9 2.0 6.4 50 4892
YBBPX500-2 560 66 2976 94.9 0.86 6.5 0.9 2.0 6.9 56 5003
YBBPX500-2 630 74 2976 95.0 0.86 6.5 0.9 2.0 7.3 63 5118
YBBPX500-2 710 83 2976 95.1 0.87 6.5 0.9 2.0 7.8 72 5230
YBBPX560-2 800 93 2975 95.3 0.87 6.5 0.9 2.0 17.7 78 6495
900 104 2976 95.5 0.87 6.5 0.9 2.0 18.6 88 6640
1000 116 2977 95.5 0.87 6.5 0.9 2.0 19.5 99 6780
1120 130 2976 95.6 0.87 6.5 0.9 2.0 20.4 112 6925
YBBPX630-2 1250 144 2981 95.8 0.87 6.5 0.9 2.0 19.8 118 8110
1400 161 2981 95.9 0.87 6.5 0.9 2.0 22.3 132 8350
1600 182 2980 96.0 0.88 6.5 0.9 2.0 23.5 153 8640
1800 205 2980 96.0 0.88 6.5 0.9 2.0 24.8 174 8825
YBBPX710-2 2000 227 2981 96.2 0.88 6.5 0.9 2.0 37.5 170 10831
2240 254 2982 96.3 0.88 6.5 0.9 2.0 41.8 195 11060
2500 284 2983 96.4 0.88 6.5 0.9 2.0 42.1 222 11294
2800 318 2983 96.4 0.88 6.5 0.9 2.0 44.3 251 11662
YBBPX800-2 3150 357 2984 96.5 0.88 6.5 0.9 2.0 71.2 280 17200
3550 398 2984 96.6 0.89 6.5 0.9 2.0 79.5 316 17700
4000 448 2984 96.6 0.89 6.5 0.9 2.0 87.7 358 18200
4500 504 2984 96.6 0.89 6.5 0.9 2.0 96.0 406 18700
Syn.Speed 1500r/min
YBBPX500-4 500 61 1485 94.5 0.84 6.5 0.8 2.0 12.4 172 5080
560 68 1485 94.7 0.84 6.5 0.8 2.0 13.3 193 5174
630 76 1485 94.9 0.84 6.5 0.8 2.0 14.2 218 5285
710 86 1485 95.0 0.84 6.5 0.8 2.0 15.1 246 5390
YBBPX560-4 800 93 1488 95.3 0.87 6.5 0.8 2.0 28.6 268 6960
900 104 1487 95.4 0.87 6.5 0.8 2.0 31.8 302 7110
1000 116 1488 95.5 0.87 6.5 0.8 2.0 34.9 335 7370
1120 130 1487 95.5 0.87 6.5 0.8 2.0 36.4 378 7520

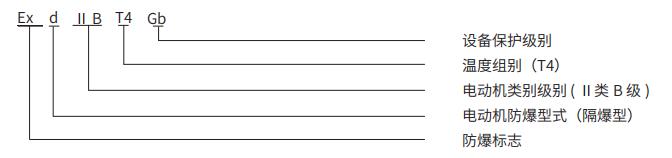

Technical Specifications Diagram

The design and manufacturing concept, combined with long-term technology and experience in the production of high-quality explosion-proof motors, has adopted. Developed by verifying reliable new technologies, new materials, and new processes. The products are well-manufactured, excellent in performance and reliable in operation. This series of Ac motor is high-efficiency, energy-saving, and environmentally friendly. It has the characteristics of lower center height, higher power, higher efficiency, lower noise, safe and reliable operation, and convenient use and maintenance.

Frequently Asked Questions

What applications are these high-voltage motors suitable for?
They are ideal for driving various industrial equipment such as fans, water pumps, compressors, cutting machinery, and transportation machinery. They operate efficiently in mining, steel, petroleum, chemical, and power station industries.
What are the available voltage and power specifications?
The standard series supports voltages from 3000V up to 11000V (with options for 100KV to 13.8KV) and offers a rated power range starting from 185kW up to 2240kW, depending on the configuration.
Can these motors be operated in extreme climates?
Yes. These motors are designed for high durability and are fully optimized to work reliably under multiple climates, whether indoors, outdoors, in high-altitude plateau environments, or in hot and humid conditions.
What explosion-proof classifications do these motors comply with?
They feature advanced safety compliance certifications, including Ex d I Mb, Ex d II B T4 Gb, and Ex II C T4 Gb explosion-proof configurations to ensure secure operation in hazardous atmospheres.
What are the primary cooling methods and mounting configurations?
The standard cooling method is IC411. For mounting configurations, the standard setup is IMB3, with customizable options for IMB35 and IMV1 variants to match your specific hardware constraints.
