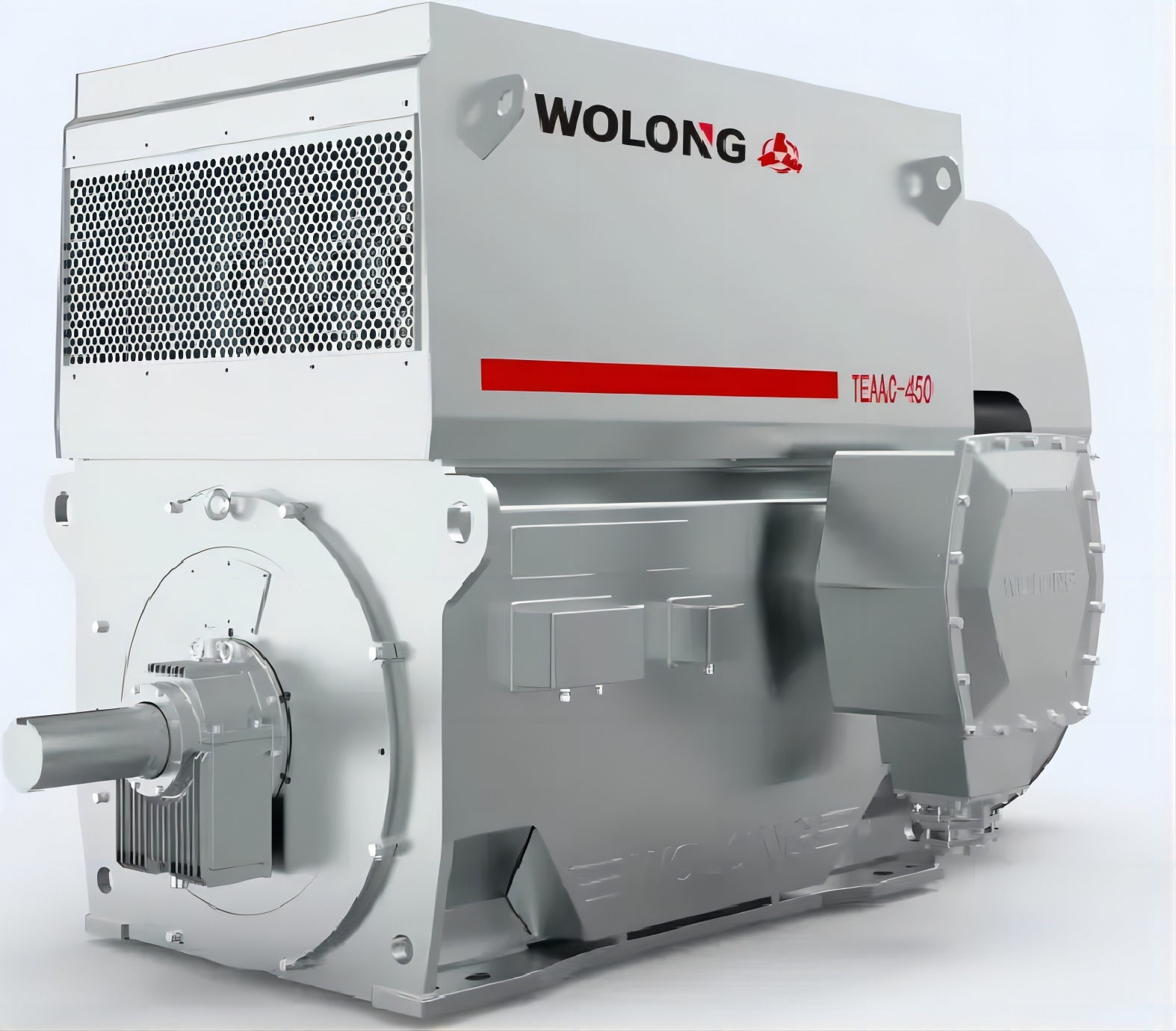

The motor can be manufactured into two explosion-proof types: positive pressure housing type Expx and Expz. The Expx explosion-proof type can be used in Zone 1 and Zone 2, and the Expz explosion-proof type can be used in Zone 2. The two explosion-proof types are used in factories in explosive gas environments formed by gas, steam or mist-like explosive gas with ignition temperatures of groups T1, T2, T3, and T4 and air. The positive pressure housing type Expx can also be used on Class I equipment. This series of motors are made of carefully selected materials and are well made. They have the characteristics of small size, light weight, high power, high efficiency, low noise, low vibration, safe and reliable operation, easy use and maintenance, energy saving and environmental protection, etc.
Application
This series of motors has the characteristics of lower center height, greater power, lower noise, safe and reliable operation, and convenient use and maintenance. It is suitable for driving various ventilators, compressors, water pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, and is used as the original power in various working conditions such as mining, steel, machinery, petroleum, chemical industry, power station, etc. Whether indoors or outdoors, in plateau climate or hot and humid climate, this series of high-voltage three phase ac motors can always provide outstanding driving force and has won the trust and praise of users.
Basic Features
Frame size:
315～630
Rated voltage:
6000～10000V
Rated frequency:
50Hz, 60Hz
Rated power:
see spectrum table 12-15
Number of poles:
2～20P
Thermal classification:
155(F)
Temperature rise limit:
80K(B class), 105K(F class)
Efficiency:
3-level energy efficiency (GB30254-2013 Grade 3)
Cooling method:
see Table 2
Installation method:
IMB3
Protection level:
see Table 2
Power factor:
S1
Ambient air temp:
-20°C～+40°C
Altitude:
≤1000m

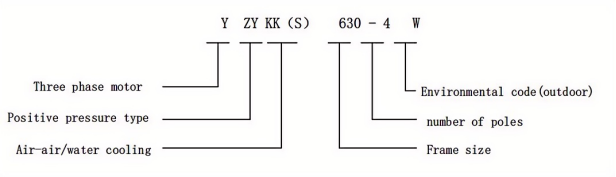

Model Description

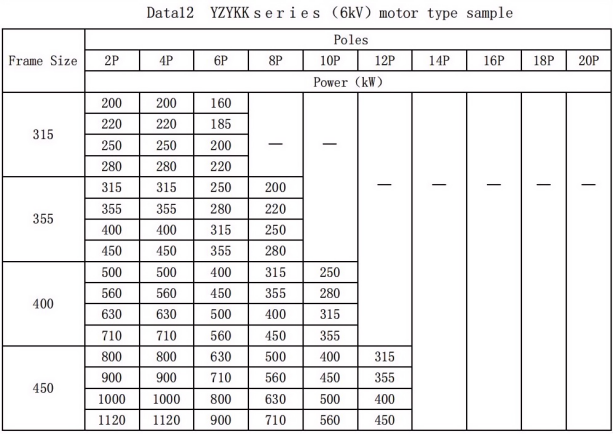

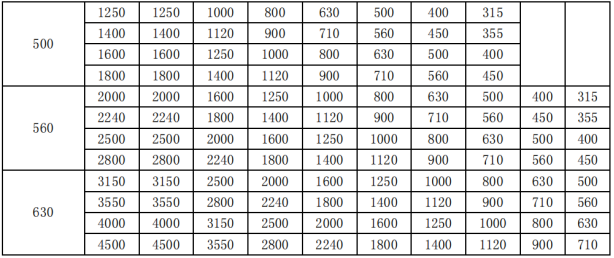

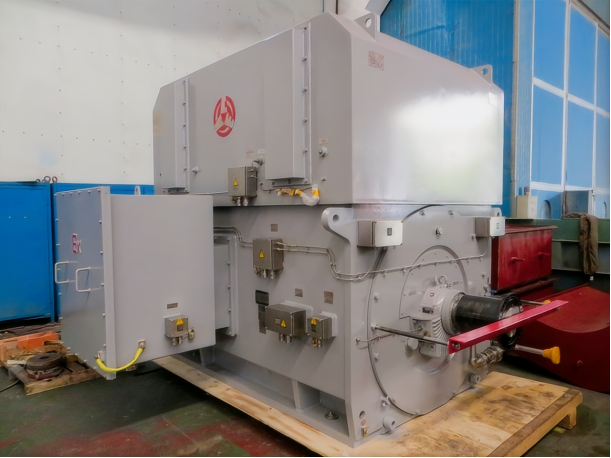

Parameter
Frequently Asked Questions (FAQ)
Q
Which zones are these explosion-proof motors suitable for?
The positive pressure housing type Expx explosion-proof motor is suitable for use in Zone 1 and Zone 2, and can also be applied to Class I equipment. The Expz explosion-proof type is designed for use in Zone 2.
Q
What are the core application fields for this series of motors?
These motors are ideal for driving ventilators, compressors, water pumps, crushers, cutting machinery, transportation machinery, and other general equipment. They are widely used in mining, steel, machinery, petroleum, chemical industry, and power stations.
Q
What is the voltage range and power rating of these motors?
The rated voltage range is 6000V to 10000V with a rated frequency of 50Hz or 60Hz. The rated power output varies based on specific model configurations, which can be found in the spectrum table (12-15).
Q
What efficiency standards do these high-voltage motors meet?
They meet the 3-level energy efficiency grade, in accordance with the GB30254-2013 standard for high-voltage three-phase cage asynchronous motors.
Q
What are the temperature rise limits and thermal classifications?
The motors are constructed with a thermal classification of 155(F). The temperature rise limit is set at 80K for Class B operation and 105K for Class F operation.
Q
What environmental conditions can these motors tolerate?
They operate efficiently within an ambient air temperature range of -20°C to +40°C, and are rated for altitudes up to 1000 meters.
