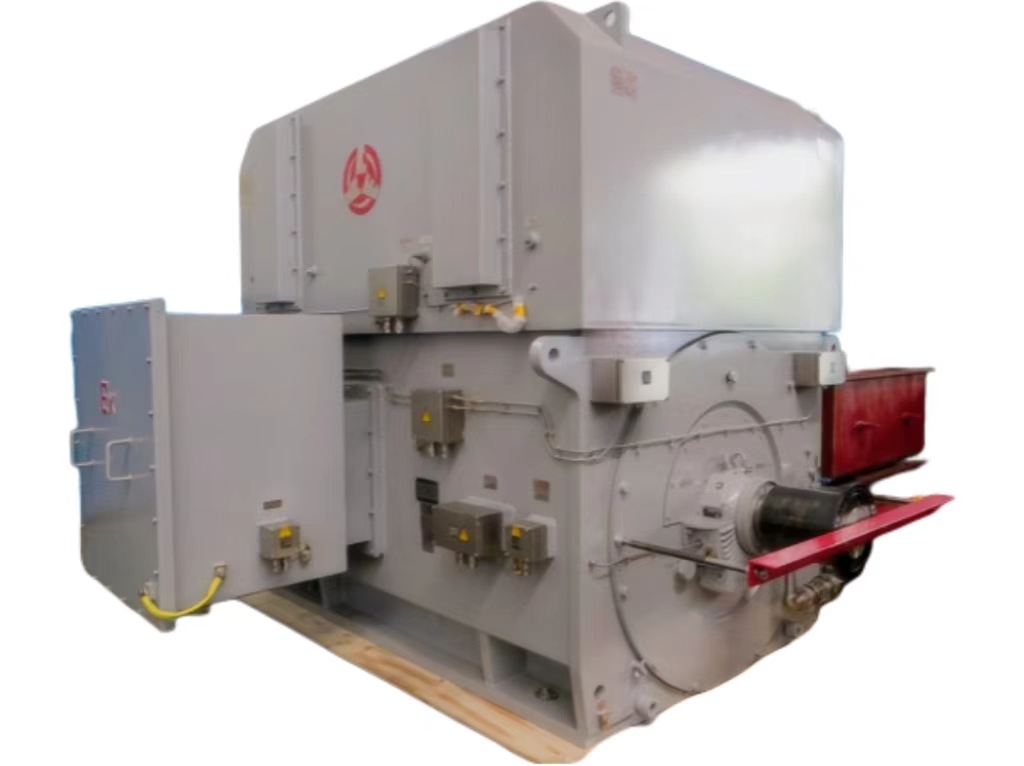

This series of high voltage electric motors adopts a box-type structure, a steel plate bending machine base, and a cast iron end cover, which has the advantages of strong load capacity, easy maintenance and assembly. The motor is light and has good rigidity. After removing the cooler, you can observe or touch the inside of the AC motors, which is convenient for installation and maintenance.
The stator adopts a pressed-in external pressure structure, the stator winding adopts 155 (F) grade insulation, and the stator coil is wound with double glass fiber film tape wrapped copper flat wire. After wrapping the main insulation and VPI overall varnishing, it has high electrical strength, mechanical strength, insulation performance, moisture resistance and thermal stability.
This series of motor has lower center height, higher power, lower noise, safe and reliable operation, use dimension convenient and other features. Suitable for Zone 2 hazardous areas with explosive environments. Drive various fans, compressors, pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, in mining, steel, machinery, petroleum, chemical, power station and other working conditions in the enterprise as the prime power.
This series of motors features a box-type structure, a steel plate bending machine base, and a cast iron end cover. It provides strong load capacity, high rigidity, a lightweight design, and easy assembly. Additionally, the cooler can be removed to easily inspect and maintain the inside of the AC motor.
The stator utilizes a pressed-in external pressure structure with Class 155 (F) insulation. The coils are wound using double glass fiber film tape wrapped copper flat wire, completed with VPI overall varnishing to deliver premium electrical and mechanical strength along with moisture resistance.
Yes, these motors are specifically designed and certified for safe and reliable operation in Zone 2 hazardous areas with explosive environments.

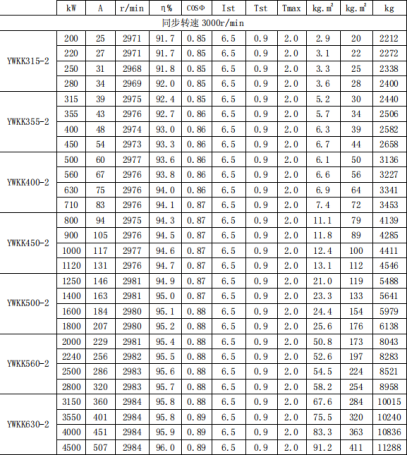

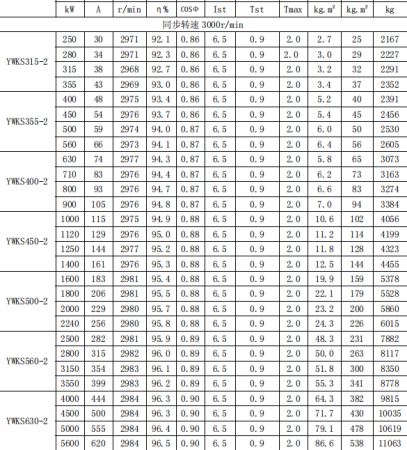

The motor models support both Air-to-Air cooling (denoted as KK) and Air-to-Water cooling (denoted as KS) configurations to meet different industrial environment demands.
These motors comply with multiple national standards, including GB 755 and GB 30254, achieving Level 3 energy efficiency for high-voltage three-phase cage asynchronous motors.
While the standard configuration is for indoor use, optional variants include outdoor (W), anti-corrosion grades (WF1, WF2, F1, F2), and tropical climate adaptations (TH, TA, THW, TAW).
