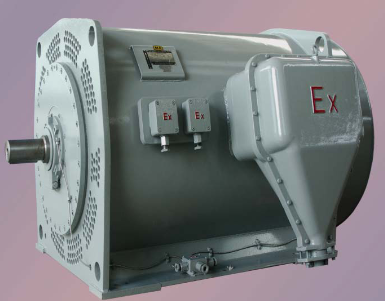

This series of motors is highly efficient, energy-saving, and environmentally friendly, with lower center height, higher power, higher efficiency, and lower noise. Offering safe and reliable operation, as well as convenient use and maintenance, these motors are suitable for driving various fans, compressors, water pumps, cutting machinery, transportation machinery, general machinery, and other machinery and equipment. They are customizable asynchronous motors ideal for driving force in enterprises under various working conditions, including mining, steel, machinery, petroleum, chemical industry, electricity, and stations. Regardless of indoor or outdoor, plateau climate or hot and humid climate, this series of high-voltage three-phase asynchronous TEFC electric motors consistently provides driving force beyond excellence, earning the trust and praise of users.
| Specification | Standard product | Option |
|---|---|---|
| Frame size | 500~800 | - |
| Rated power | 185kw~2240kw | - |
| Number of poles | 2P~12P | 10P, 12P, 14P, 16P |
| Rated voltage | 3000V~11000V | 100KV~13.8KV |
| Frequency | 50 Hz | 60 Hz |
| Insulation Class | 155(F) | |
| Vibration speed | 2.3mm/s | 1.8mm/s |
| noise | GB 10069.3 | |
| Cooling Method | IC411 | |
| Sense of rotation | 2P: clockwise | 4P: 315~400 Bi-direction | |
| Mounting Type | IMB3 | IMB35, IMV1 |
| Protection degree | IP55 | IP56, IP65 |
| Duty | S1 | S3, S6, S9 |
| Explosion proof class | Ex d I Mb / Ex d II B T4 Gb / Ex II C T4 Gb | |
| Temperature | -20℃~+40℃ | -40℃~60℃ |
| Altitude | ≤1000m | ≤4500m |
| Paint color | PB09(GSB05-1426) | RAL |
| Type | Power (kW) | Rated Current 6000V (A) | Speed (r/min) | Efficiency (100%) | Power Factor (100%) | Locked/Rated Current | Locked/Rated Torque | Max./Rated Torque | Moment of Inertia (motor) (kg.m²) | Moment of Inertia (load) (kg.m²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Syn. Speed 3000r/min | |||||||||||
| YBXKK500-2 | 500 | 59 | 2977 | 94.7 | 0.86 | 6.5 | 0.9 | 2.0 | 6.4 | 50 | 4692 |
| 560 | 66 | 2976 | 94.9 | 0.86 | 6.5 | 0.9 | 2.0 | 6.9 | 56 | 4803 | |
| 630 | 74 | 2976 | 95.0 | 0.86 | 6.5 | 0.9 | 2.0 | 7.3 | 63 | 4918 | |
| 710 | 83 | 2976 | 95.1 | 0.87 | 6.5 | 0.9 | 2.0 | 7.8 | 72 | 5030 | |
| Syn. Speed 1500r/min | |||||||||||
| YBXKK500-4 | 500 | 61 | 1485 | 94.5 | 0.84 | 6.5 | 0.8 | 2.0 | 12.4 | 172 | 4880 |
| 560 | 68 | 1485 | 94.7 | 0.84 | 6.5 | 0.8 | 2.0 | 13.3 | 193 | 4974 | |
| 630 | 76 | 1485 | 94.9 | 0.84 | 6.5 | 0.8 | 2.0 | 14.2 | 218 | 5085 | |
| 710 | 86 | 1485 | 95.0 | 0.84 | 6.5 | 0.8 | 2.0 | 15.1 | 246 | 5190 | |
| Type | Power (kW) | Rated Current 10000V (A) | Speed (r/min) | Efficiency (100%) | Power Factor (100%) | Locked/Rated Current | Locked/Rated Torque | Max./Rated Torque | Moment of Inertia (motor) (kg.m²) | Moment of Inertia (load) (kg.m²) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Syn. Speed 3000r/min | |||||||||||
| YBXKK500-2 | 400 | 29 | 2977 | 94.2 | 0.86 | 6.5 | 0.8 | 2.0 | 5.9 | 31 | 4735 |
| 450 | 32 | 2976 | 94.5 | 0.86 | 6.5 | 0.8 | 2.0 | 6.4 | 35 | 4847 | |
| 500 | 36 | 2976 | 94.6 | 0.86 | 6.5 | 0.8 | 2.0 | 6.9 | 39 | 4961 | |
| 560 | 40 | 2977 | 94.7 | 0.86 | 6.5 | 0.8 | 2.0 | 7.3 | 44 | 5073 | |
| Syn. Speed 1500r/min | |||||||||||
| YBXKK500-4 | 400 | 29 | 1487 | 93.7 | 0.86 | 6.5 | 0.8 | 2.0 | 11.5 | 135 | 4906 |
| 450 | 32 | 1486 | 94.2 | 0.86 | 6.5 | 0.8 | 2.0 | 12.4 | 153 | 5000 | |
| 500 | 36 | 1486 | 94.2 | 0.86 | 6.5 | 0.8 | 2.0 | 14.2 | 170 | 5111 | |
| 560 | 40 | 1487 | 94.4 | 0.86 | 6.5 | 0.8 | 2.0 | 15.1 | 191 | 5216 | |
These motors are highly efficient and energy-saving, making them ideal for driving various fans, compressors, water pumps, cutting machinery, transportation machinery, and other general equipment. They are widely utilized across mining, steel, machinery, petroleum, chemical, and electricity industries.
In the model code, "Y" represents a three-phase asynchronous motor, "B" indicates the flameproof design, "X" highlights high efficiency, and "KK" specifies the air-to-air cooling system.
Yes. These motors are designed for high reliability and can operate seamlessly in both indoor and outdoor settings. They are built to withstand challenging plateau climates, as well as hot and humid conditions.
The standard frame sizes range from 500 to 800 with rated voltages between 3000V and 11000V. Additionally, customizable options up to 13.8KV are available for specific configuration needs.
The standard mounting type is IMB3, with options for IMB35 and IMV1. The default degree of protection is IP55, with customizable options for IP56 and IP65.
